current location：Home>Products>Manual Positioners>Multi-axis Stages

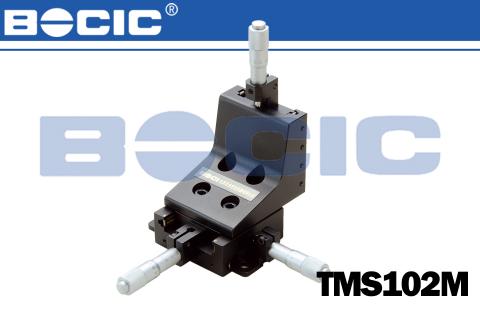

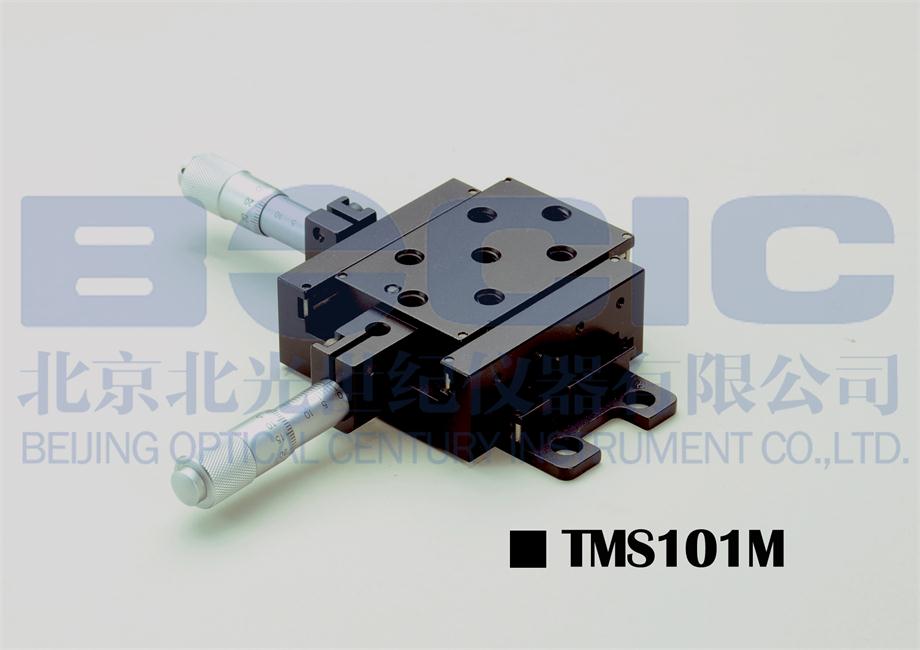

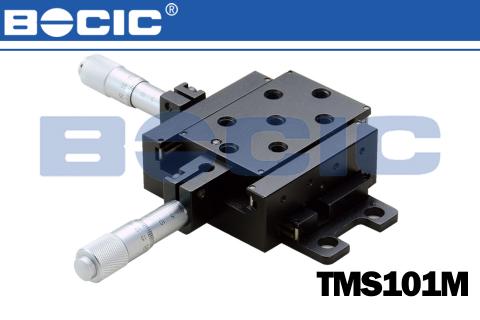

TMS100 series multi-axis positioning stages

    1.Actuated with high precision ball guide rail,allowing for reliablemovement and high precision.

    2.Driven withmicrometer head.

    3.Resetspringeliminates return backlash.4.Separate models are available for right-hand and left-hand use.




  • description
  • parameters

TMS100 series multi-axis positioning stages



1.Actuated with high precision ball guide rail,allowing for reliablemovement and high precision.

2.Driven withmicrometer head.

3.Resetspringeliminates return backlash.4.Separate models are available for right-hand and left-hand use.






Model

TMS101M

TMS102M

Axles

XY two axles

XYZ three axles

Travel （mm）

13

Driving

micrometer head

Minimum reading（mm）

0.01

Resolution（mm）

0.002

Error of swing

＜30″

Loading capacity (kg)

5

2.5

Weight （kg）

0.35

0.7
