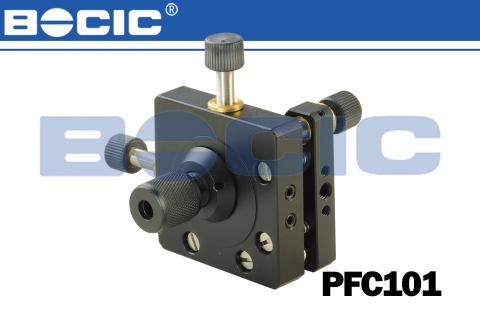

PFC101 precision fiber coupler

    1. Can provide the three translations for the fiber and two tilted adjusting ,five degrees of freedom.

    2. Tx driving by hand wheel , M6×0.25 fine thread screw driving other four axis

    3. Had diameter 6.35mm through hole in center ,it can work hold PFA101 and PFA102 fiber holders

  • description
  • parameters

PFC101 precision fiber coupler



1. Can provide the three translations for the fiber and two tilted adjusting ,five degrees of freedom.

2. Tx driving by hand wheel , M6×0.25 fine thread screw driving other four axis

3. Had diameter 6.35mm through hole in center ,it can work hold PFA101 and PFA102fiber holders



Related Products：


        PFA101 Fiber Clamp                          PFA102 Fiber Clamp

Model

PFC101

Applied diameter（mm）

≤φ6.35

Adjusting range of translation（mm）

Tx

6

Ty

±2

Tz

±2

Adjusting range of tilt

θy

±4°

θz

±4°

Weight（kg）

0.2
