current location:Home>Products>Optics Mounts Series>Optics Mounts

GLH201 gimbal mounts for cylindrical lenses

    1. Make the cylindrical lens tilt adjustment with two dimensional orthogonal coplanarity

    2. Rotation adjustment around the optical axis

    3. Had lock hand wheel in three axis

    4. Driving by fine thread screw

  • description
  • parameters

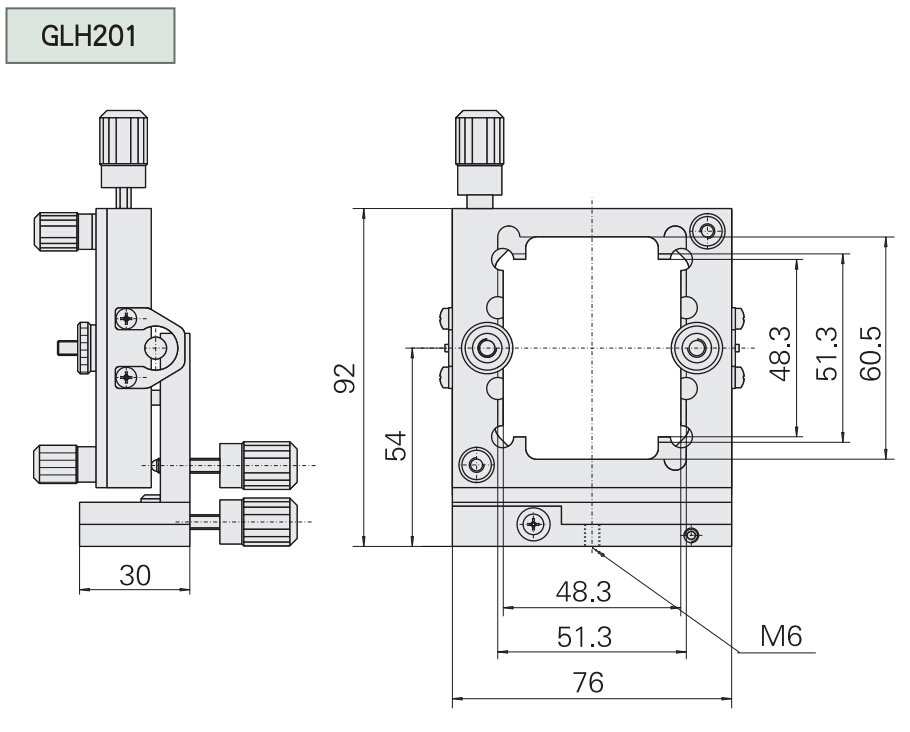

GLH201 gimbal mounts for cylindrical lenses




1. Make the cylindrical lens tilt adjustment with two dimensional orthogonal coplanarity

2. Rotation adjustment around the optical axis

3. Had lock hand wheel in three axis

4. Driving by fine thread screw


Model

GLH201

Adjusting rang of tilt

θy

±4°

θz

±4°

Range of rotation adjustment

θx

±5°

Length of clampingmm

50~50.8

Width of clampingmm

60.5

Weightkg

0.4
