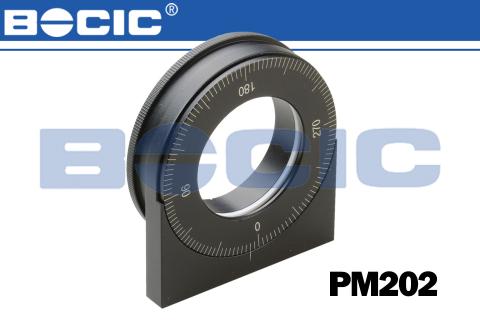

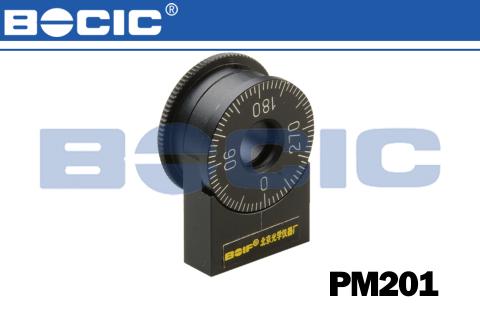

PM200 series polarizer holders

    1. Graduations with 360 ° around the unit

    2. Design standard M14×0.75 threaded hole in the centre of table

    3. Can be matched with a plurality of holders

  • description
  • parameters

PM200 series polarizer holders




1. Graduations with 360 ° around the unit

2. Design standard M14×0.75 threaded hole in the centre of table

3. Can be matched with a plurality of holders



Model

PM201

PM202

PM203

A

Φ30

Φ80

Φ42

B

Φ10

Φ46

Φ22

C

26

48

30

D（Applied diameter）

Φ12.7

Φ50.8

Φ25.4

W

15

20

15
