- description
- parameters
|
Model |

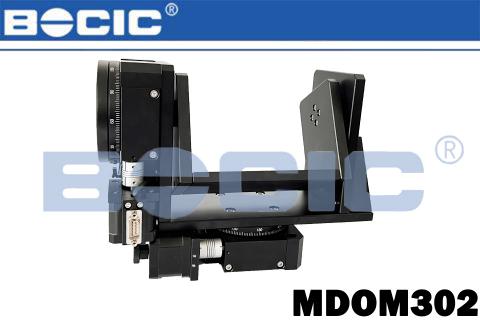

MDOM302 |
|
|
Driving |
Worm and worm gear |
|
|
Adjustment range |
X |
±180°/360° |
|
Z |
±180°/360° |
|
|
Gear ratio / Resolution |
X |
180:1/0.0002° |
|
Z |
180:1/0.0002° |
|
|
Resetting positioning accuracy / Stepper motor (1.8°) |
X |
0.005°/42 stepper motor |
|
Z |
0.005°/42 stepper motor |
|
|
Maximum speed |
X |
15°/s |
|
Z |
15°/s |
|
|
Loading capacity（kg） |
10 |
|
|
Weight（kg） |
7 |
|
