MVS100 series motorized vertical translation stages
1.The stage adopts a scissor-type support and high precision ballscrew actuation.
2.It ensures smooth and reliable operation with high precision and large bearing capacity.
3.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
- description
- parameters
|
Model |

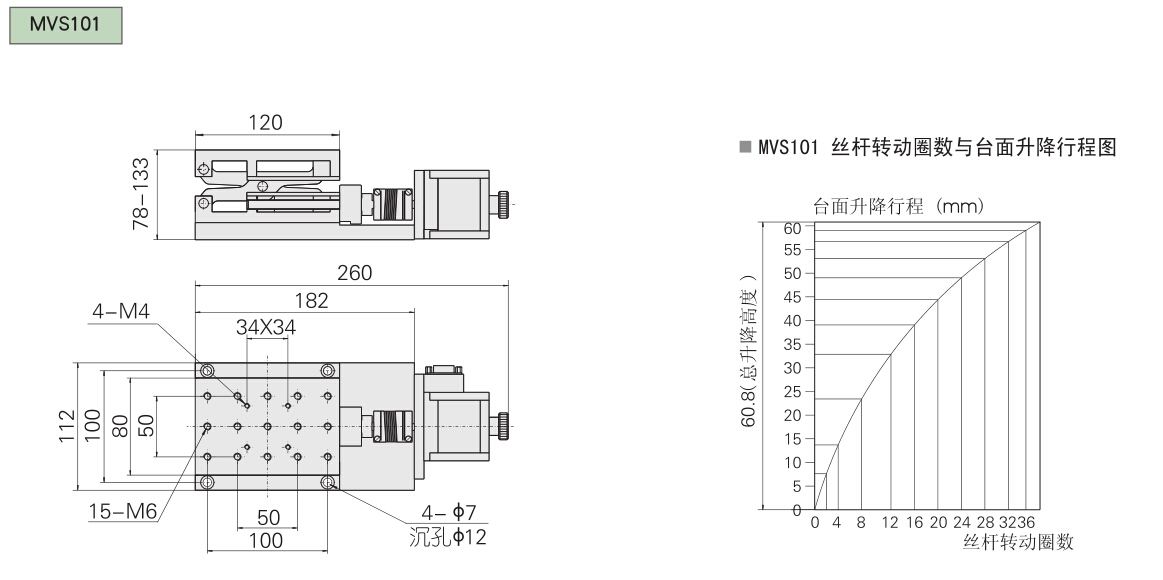

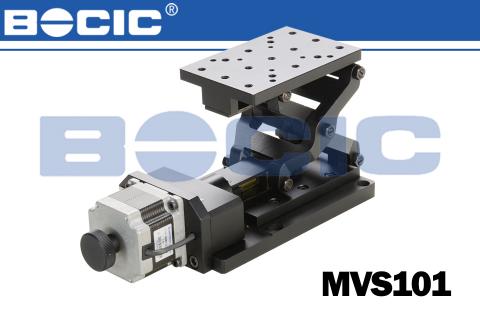

MVS101 |

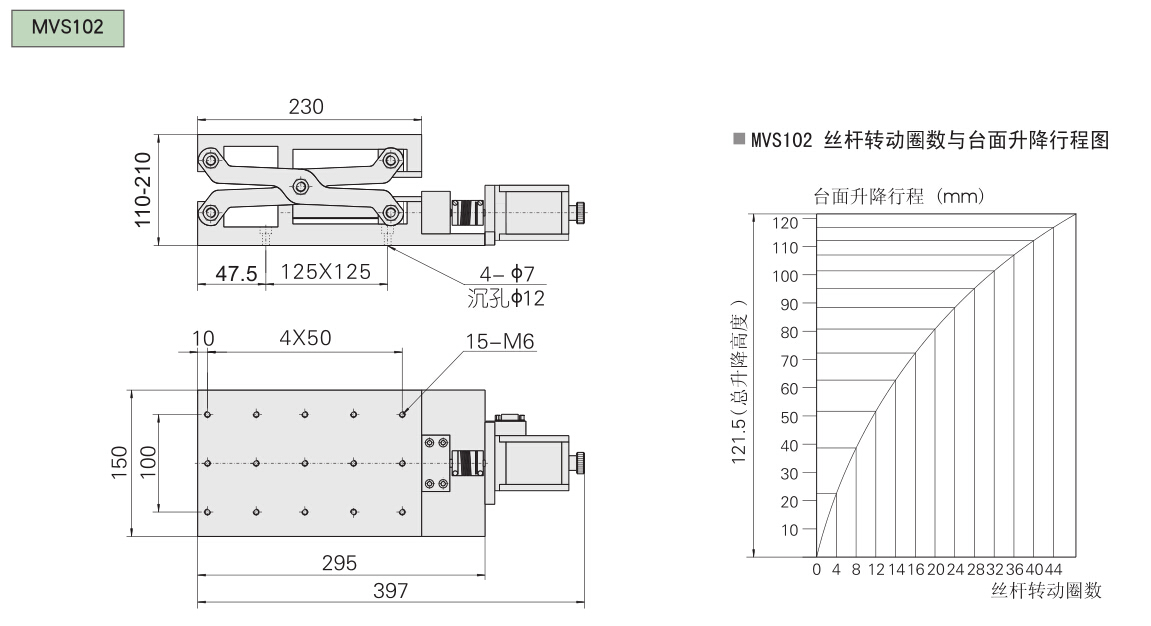

MVS102 |
|
Travel（mm） |
55 |
100 |
|
Table size (mm） |
80×120 |
150×230 |
|
Resolution（mm） |
0.01 |
|
|
Maximum speed (mm/s) |
20 |
20 |
|
Resetting positioning accuracy (mm） |
0.02 |
0.03 |
|
Loading capacity(kg) |
10 |
20 |
|
Stepper motor（1.8°） |
56stepper motor |
|
|
Weight（kg） |
2 |
12 |
