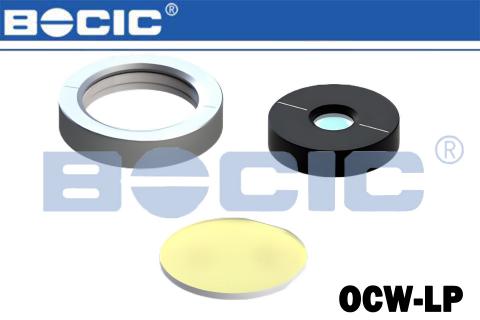

OCW-LP光膠零級波片
- 產品介紹
- 產品參數
|
產品規格 |
|
|||||
|
型號 |
相位 |
直徑 |
類型 |
波長 |
支架 |
通光孔徑 |
|
OCW-LP-01 |
λ/2 |
10 |
光膠 |
405,488,532, 633,780,795 ,852,894,980 ,1030,1064,1550 ,2020 |
|
|
|
OCW-LP-01M |
λ/2 |
10 |
光膠 |
φ25.4x6 |
8 |
|
|
OCW-LP-02 |
λ/2 |
12.7 |
光膠 |
|
|
|
|
OCW-LP-02M |
λ/2 |
12.7 |
光膠 |
φ25.4x6 |
11.5 |
|
|
OCW-LP-04 |
λ/2 |
20 |
光膠 |
|
|
|
|
OCW-LP-04M |
λ/2 |
20 |
光膠 |
φ25.4x6 |
18 |
|
|
OCW-LP-05 |
λ/2 |
25.4 |
光膠 |
|
|
|
|
OCW-LP-05M |
λ/2 |
25.4 |
光膠 |
φ30x6 |
23.5 |
|
|
OCW-LP-09 |
λ/4 |
10 |
光膠 |
248,266,355 ,405,488,532 ,633,780,795, 852,894,980, 1030,1064,1550, 2020 |
|
|
|
OCW-LP-09M |
λ/4 |
10 |
光膠 |
φ25.4x6 |
8 |
|
|
OCW-LP-10 |
λ/4 |
12.7 |
光膠 |
|
|
|
|
OCW-LP-10M |
λ/4 |
12.7 |
光膠 |
φ25.4x6 |
11.5 |
|
|
OCW-LP-12 |
λ/4 |
20 |
光膠 |
|
|
|
|
OCW-LP-12M |
λ/4 |
20 |
光膠 |
φ25.4x6 |
18 |
|
|
OCW-LP-13 |
λ/4 |
25.4 |
光膠 |
|
|
|
|
OCW-LP-13M |
λ/4 |
25.4 |
光膠 |
φ30x6 |
23.5 |
|
注： OCW-LP 序列號，帶“M”為有支架。 訂貨型號需在型號后加波長值，即：型號-波長。
